Clamshell Packaging


Stock Box Clamshells



Stock Box Clamshells from VisiPak provides an option over other types of box packaging.  With multiple sizes of stock plastic clamshell packages available, our stock box clamshells are the perfect answer when your project requires quick delivery to market with minimal upfront costs.

Need to know more about product size and fit and how easily our chart can help find what you need? Learn more from our video.

Single Sided
Boxes
Round Cavity
Round Header
Double Sided
ClamTray

How to Specify a Clamshell

Sealing Options

Need Graphic Inserts?

Stock Box Clamshells

Can’t find what you need? (800) 949-1141 Change sort order by clicking on column headers.

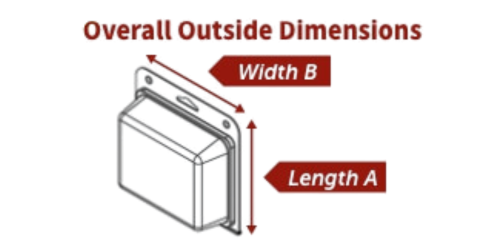

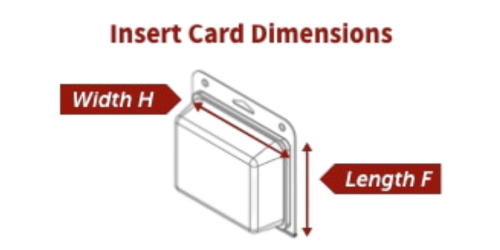

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Part # Length “A” Width “B” Thickness Length “C” Width “D” Depth “E” Length “F” Width “H” Case Qty BUY
210 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 064406 2.750 1.880 0.020 1.690 1.500 0.750 1.690 1.500 300
211 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 675306 3.630 2.750 0.020 2.190 2.000 1.250 2.530 2.380 225
212 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 095714 3.480 1.560 0.020 2.310 1.190 0.690 2.500 1.190 300
213 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 051290 3.380 1.880 0.020 2.440 1.560 0.500 2.440 1.560 250
214 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 397609 4.000 1.560 0.020 2.940 1.250 1.000 3.000 1.250 600
215 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 028532 4.810 2.690 0.020 3.380 2.000 1.250 3.810 2.380 200
216 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 291062 4.380 1.880 0.020 3.440 1.560 0.500 3.440 1.560 450
217 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 004764 4.810 2.690 0.020 3.690 2.310 0.750 3.810 2.380 250
218 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 802TF 5.630 6.000 0.020 3.690 4.690 1.500 4.460 5.460 350
219 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 803TF (S2) 5.630 6.000 0.020 3.690 4.690 2.500 4.460 5.460 350
220 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 514525 6.590 4.940 0.020 3.860 4.260 2.250 5.430 4.390 75
221 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 801TF 5.630 6.000 0.020 3.880 4.880 1.000 4.460 5.460 350
222 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 245426 5.060 1.560 0.020 4.000 1.190 1.130 4.060 1.190 340
223 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 109TF 6.130 3.130 0.020 4.000 1.440 1.250 4.940 2.560 500
224 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 213TF 7.440 3.630 0.020 4.030 2.060 0.250 6.440 3.140 500
225 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 92TF 6.000 2.310 0.020 4.300 1.200 1.000 4.900 1.810 1,000
226 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 456222 5.500 3.690 0.020 4.440 3.310 0.750 4.440 3.310 150
227 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 175TF 5.690 4.060 0.020 4.480 3.500 0.080 4.610 3.660 650
228 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 304TF 6.560 7.560 0.020 4.530 6.190 2.000 5.410 7.130 250
229 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 301TF (S2) 6.560 7.560 0.020 4.750 6.440 2.420 5.410 7.130 250
230 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 302TF (S2) 6.560 7.560 0.020 4.750 6.440 3.470 7.130 5.410 250
231 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 303TF (S) 6.560 7.560 0.020 4.750 6.440 1.470 5.410 7.130 250
232 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 300TF (S2) 6.560 7.560 0.020 5.060 6.750 1.690 5.410 7.130 250
233 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 305TF 6.560 7.560 0.020 5.060 5.060 0.500 5.410 7.130 250
234 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 939128 6.560 3.690 0.020 5.130 2.940 1.630 5.560 3.130 50
235 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 322289 6.380 2.690 0.020 5.310 2.310 0.880 5.310 2.250 200
236 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 492684 6.560 4.940 0.020 5.430 4.440 1.250 5.430 4.390 80
237 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 002414 6.590 3.940 0.020 5.560 3.580 1.250 5.380 3.340 320
238 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 409TF (S) 8.250 4.940 0.020 5.560 3.190 1.630 7.130 4.340 300
239 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 410TF (S) 8.250 4.940 0.020 5.560 3.190 2.250 7.130 4.340 300
240 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 205TF 7.440 3.630 0.020 5.690 2.310 1.130 6.440 3.140 500
241 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 261TF 8.000 3.440 0.020 5.750 2.190 1.250 6.940 2.970 500
242 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 411TF 8.250 4.940 0.020 6.090 3.630 0.630 7.130 4.340 300
243 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 786802 7.500 2.750 0.020 6.130 2.000 1.250 6.310 2.250 150
244 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 099462 7.750 1.880 0.020 6.190 1.190 1.250 6.560 1.500 250
245 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 836263 7.750 1.880 0.020 6.190 1.310 0.750 6.560 1.500 250
246 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 015357 7.750 6.880 0.020 6.250 6.060 1.250 6.500 6.380 75
247 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 404TF (S) 8.250 4.940 0.020 6.250 3.560 1.630 7.130 4.340 300
248 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 403TF 8.250 4.940 0.020 6.380 3.630 1.300 7.130 4.340 300
249 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 526577 8.000 4.000 0.020 6.600 3.400 1.000 6.940 3.690 200
250 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 775TF 8.750 8.000 0.020 7.230 6.750 1.540 7.900 7.580 240
251 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 094465 9.380 6.000 0.020 7.750 5.000 1.750 8.190 5.440 50
252 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 587TF 10.940 6.880 0.020 8.000 5.750 0.500 9.780 6.280 250
253 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 578TF 10.940 6.880 0.020 8.500 5.560 0.380 9.780 6.280 250
254 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 901TF (S) 11.000 9.380 0.030 8.690 7.440 2.000 9.900 8.630 150
255 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 902TF (S) 11.000 9.380 0.030 8.690 7.440 2.500 9.900 8.630 150
256 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 903TF 11.000 9.380 0.030 8.690 7.440 3.060 9.900 8.630 150
257 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 505TF 10.940 5.250 0.020 8.810 4.030 0.380 9.630 4.590 400
258 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 577TF 10.940 6.880 0.020 8.810 5.380 1.130 9.780 6.280 250
259 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 580TF 10.940 6.880 0.020 8.940 4.440 1.000 9.780 6.280 250
260 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 500TF 10.940 5.250 0.020 9.000 4.000 1.500 9.630 4.590 350
261 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 588TF 10.940 6.880 0.020 9.310 5.750 1.130 9.780 6.280 250
262 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 1101TF (S) 12.130 12.130 0.020 9.940 8.940 1.500 10.880 11.500 150
263 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 1102TF (S) 12.130 12.130 0.020 10.130 10.750 1.440 10.880 11.500 125
264 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 603TF 14.500 5.250 0.020 12.380 3.750 2.130 13.190 4.600 200
265 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 605TF 14.500 5.250 0.020 12.500 3.940 1.000 13.190 4.600 200
266 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 600TF 14.500 5.250 0.020 12.560 4.000 1.530 13.190 4.600 200
267 wpusername0394 10/12/2025 01:45 PM wpusername0394 10/12/2025 01:45 PM 286TF 7.000 5.000 0.020 5.750 4.340 500
Part # Length “A” Width “B” Thickness Length “C” Width “D” Depth “E” Length “F” Width “H” Case Qty BUY
